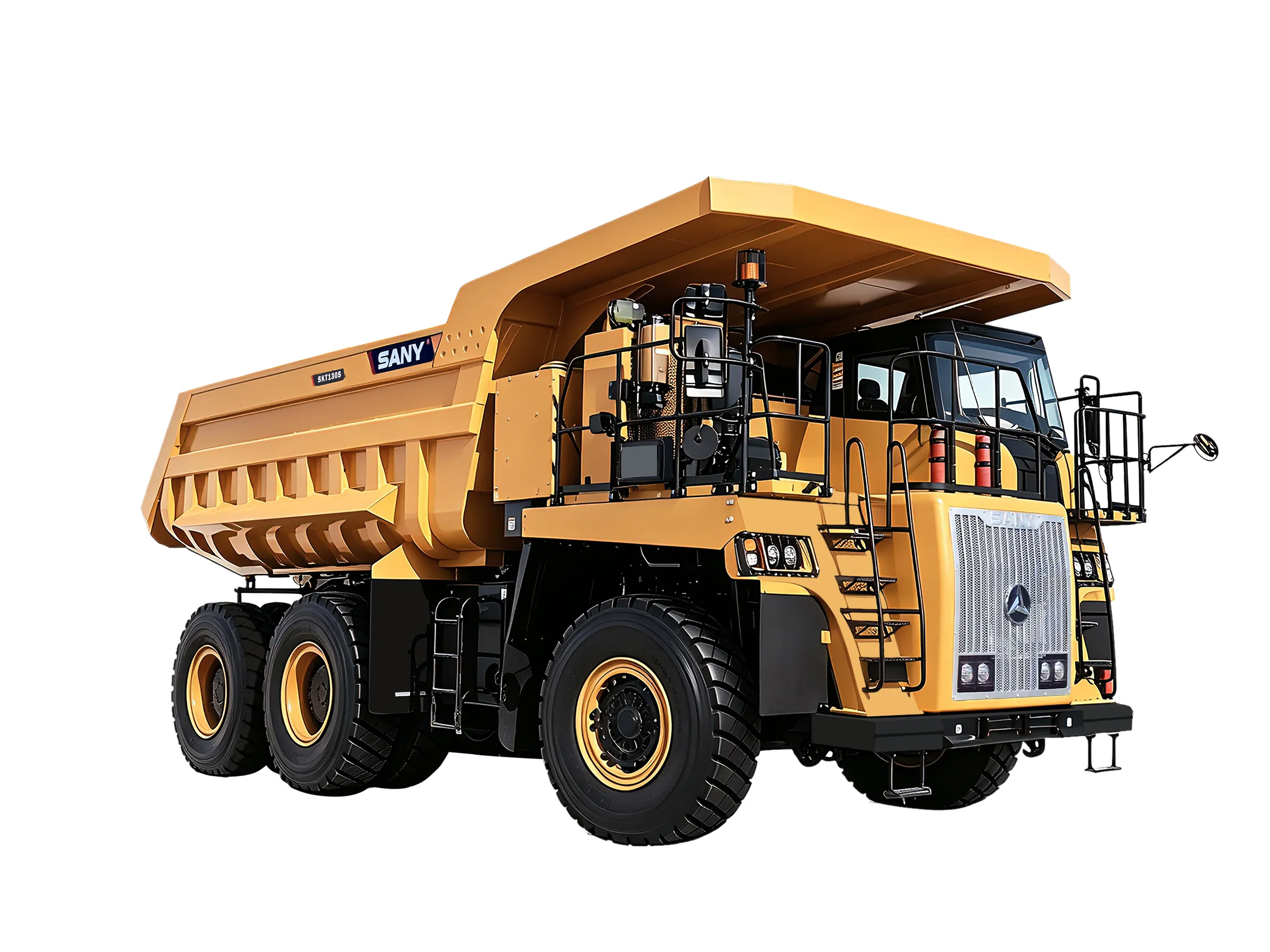

SKT130S
Diesel-Electric Off-Highway Mining Truck
Load Weight
90 T
Maximum Torque
3000 NM
Total Power
925 kW

Features

High-strength Frame

· The newly designed low-stress and high-strength frame effectively prevents the fatigue breakage of the frame and reduces the overall stress level by 51% compared with competing products.

Hydro-Pneumatic Suspension

· The hydro-pneumatic suspension technology is applied to replace the traditional leaf spring structure, remarkably improve the life and comfort of the machine, thoroughly solve the frequent breakage problem of front suspension leaf springs in the industry, and promote the attendance rate of the machine. The hydro-pneumatic suspension features excellent shock-absorbing and damping performance to remarkably improve the load application of the frame and prolong the life of the frame.

Oil And Gas Suspension

· Front oil and gas suspension, buffer, and vibration reduction are significantly improved; greatly reducing the impact force of the frame, cab, and other heavy parts, reduce the occurrence of various faults, and extend the life of the vehicle; thoroughly solve the fracture problem of the front plate spring.

Full Hydraulic Steering and Emergency Steering

· The vehicle steering makes it easier to solve the problem of heavy mechanical steering caused by heavy trucks in the industry; equipped with emergency steering, to solve the problem of steering failure after engine flameout or steering pump failure.

Intelligent Electrical System

· - SANY intelligent control module with an electrical fault self-diagnosis system can troubleshoot some problems automatically.

· - 10 "central control screen equipped with reversing camera, Bluetooth connection, compatible with intelligent mine management system. The built-in GPS module can effectively monitor the vehicle operation.

Specs & Compare

Automatic/Manual
Axle
Capacity (Struck/Heaped)
Displacement
Engine Model
Gearbox Type
Left/Right Hand Drive
Load Weight
Lubrication System
Max. Gradeability
Maximum Torque
Min. Turning Radius
Net Weight
Number/Type of Cylinders
Size
Total Power
Tyre
SKT130S
Automatic
35+55+55(t)
50/61 m³
16.72 L
Weichai WP17G770E304
-
Left/Right
90 T
Optional automatic lubrication
>30 %
3000 NM
13000 mm
54 T
8/V shape,turbocharged
11500×5750×4950 mm
925 kW
18.00R33
Specifications are for reference only, the latest data is subject to the contract.
