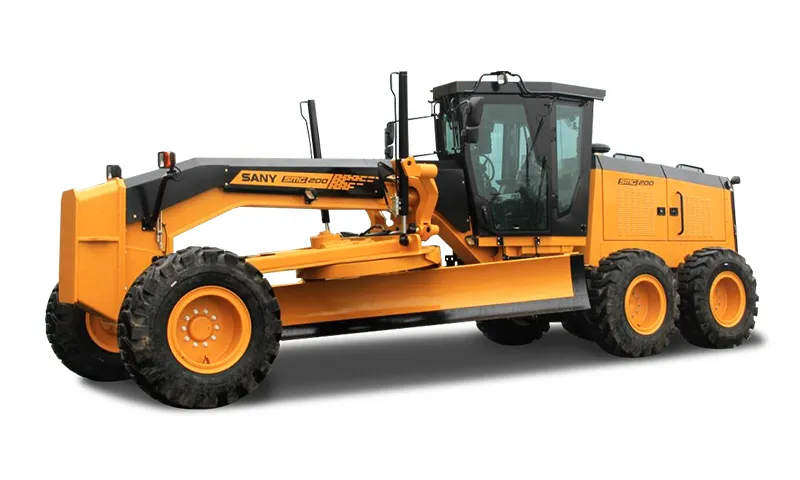

SMG200C-8 AWD
Motor Grader
Length of Blade4270 (14ft)mm
Operating Weight19070T
Rated Power186kW
Features
Parameters
Engine Model
CUMMINS QSL9Rated Power
186kWPeak Torque
949NMOverall Dimensions (L×W×H)
9187×2750×3498mmOperating Weight
19070TForward Speed
4.0/5.4/8.0/10.9/19.1/23.4/32.3/46.8km/hReverse Speed
3.2/5.9/8.7/13.5/25.3/37km/hMin. Turning Radius
7.5mLength of Blade
4270 (14ft)mmHeight of Blade
620mmMax. Lift Above Ground
480mmMax. Depth of Cut
715mmRecommended
STG190C-8S(WEICHAI)
3660 (12ft) mm
Length of Blade：
15.8 T
Operating Weight：
147 kW
Rated Power：
SMG200C-8(PDJ200000166)
3660(12ft) mm
Length of Blade：
17 T
Operating Weight：
160 kW
Rated Power：
STG230C-8S
4270 (14ft) mm
Length of Blade：
16.8 T
Operating Weight：
180 kW
Rated Power：
SMG200(PDJ100000157)
4270 (14ft) mm
Length of Blade：
17.96 T
Operating Weight：
186 kW
Rated Power：
