When SAC12000, China's first set thousand-tonnage all-terrain crane was launched in 2010, Sany Group has been taking a lead in driving forward the research and development of Chinese super tonnage crane.
Sany has self-developed a wide range of super large cranes since then and becomes one of the best-selling brands in global super-tonnage crane market.

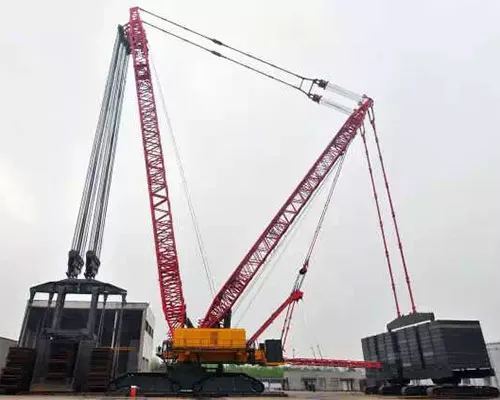

Sany SCC36000A crawler crane
SCC36000A crawler crane is known as the No.1 crane in the world with the maximum lifting capacity and maximum lifting moment of over 3600 t and 86000 t*m respectively. The innovative boom system of herringbone dual base booms ensures a strong lifting power which is especially good for lifting work in nuclear power projects.
Sany SCC36000A crawler crane worked at CAP1400 pressurized-water nuclear plant in Shidao Bay, Shandong province.
Powered by two water-cooled, fuel efficient and low emission 6-cylinder Cummins engines with rated power of 641kW/rpm, SCC36000A crawler crane shows great productivity and economical feature. The four-track, eight-drive system of the main machine and counterweight produce a small, even ground pressure and is easier to transport. Moreover, the precise and reliable synchronized control system realizes a synchronized rotary and walking control of main machine and superstructure.

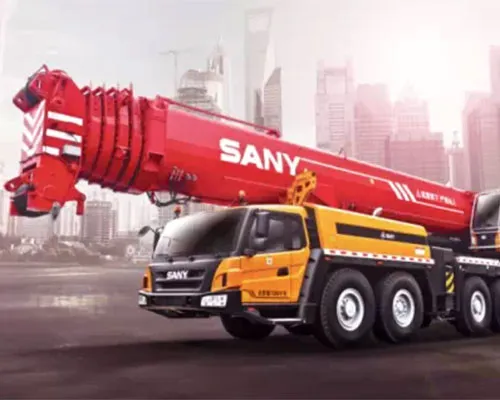

Sany SAC12000 all-terrain crane
SAC12000 all-terrain crane is the first kiloton all-terrain crane in Asia. It is equipped with special-purpose 9-axle chassis, U-shaped boom with 8 sections, main and auxiliary winches. The length of its base boom and full-extend boom is 18.6m and 102m respectively, which is capable of lifting a 2.0MW wind turbine easily. [!--empirenews.page--]
CCTV10 reported the lifting process of Sany SAC12000 AT crane in Tianchang City, Anhui province.
With maximum lifting capacity up to 1200 ton, maximum rated torque of 36000kN.m, Sany SAC12000 AT crane can be used under various demanding conditions. The self-assembly feature for quick and easy assembly and dismantling, optimized dimensions and weights ensure that the crane can travel and transport from one site to another with its outriggers, swing table, main and aux winches mounted.
Sany SAC6000 all-terrain crane
SAC6000 all-terrain crane is tailored to meet the lifting demand of 2.0MW wind turbine. It's the star product of Sany super-tonnage cranes. It adopts many technologies that are good for lifting wind turbine, for instance, start-up at low temperature, great gradeability, quickly removable counterweight, and short boom head that is suitable for wind turbine. And the customers even dub it as the wind turbine crane.

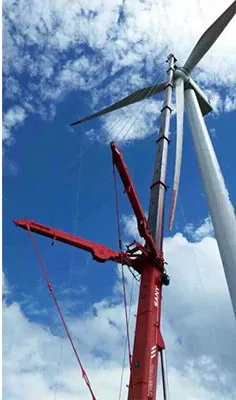

Sany SAC6000 AT crane is the first 600t machine that work on the Yunnan-Guizhou Plateau area
Until now, nearly 30 sets 600-tonnage cranes of Sany have served in the major wind farm project of China Guodian Corporation, China Datang Corporation, China Huaneng Group, China Huadian Corporation, China General Nuclear Power Corporation (CGN) etc. Their excellent performance is proven and acknowledged in many construction cases.
Sany SAC3500 all-terrain crane
Sany SAC3500 is the first 350-ton all-terrain crane with six-axle chassis, six boom sections in China. The maximum length of boom and luffing jib is 70m and 78m respectively, which ensures the maximum lifting height of 132m and working radius of 96m. 0°~40°automatic infinite variable luffing jib is applied, ensuring conveniently switching over among all operations with high efficiency.

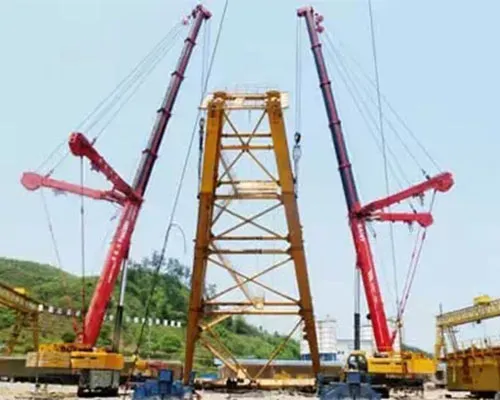

2 sets of Sany SAC3500 all-terrain cranes lift tower cranes for the railway construction at Zhijiang county, Hunan province.
The innovative design of six driving modes and four braking modes of Sany SAC3500 AT crane provides more reliable and comfortable traveling performance. The international advanced distributed integration bus data communication network and the configuration of the abundant sensing elements can achieve timely feedback of data information and monitoring of the overall working status in real-time.
Sany SSC1020 special use crane
Sany SSC1020 is a truck crane tailor-made for wind turbines of 2.0MW and below. The maximum rated lifting capacity within 13m radius reaches 100 tons, and the maximum lifting height is 100 meters thanks to the innovative design of octagon shaped boom sections.
Sany SSC1020 special use crane lift wind turbines at the hilly area in Anqiu city, Shandong province
The high performance hydro-pneumatic suspension system of SSC1020 special use crane can automatically adjust the machine according to the feedback from roughness of road surface, thus providing a smooth and comfort driving experience. Designed according to European and US standard with the top configuration of power train, hydraulic system and electric system imported from overseas top brands, SSC1020 special use crane ensures the safety, stability and high efficiency.
It is also considered to be the most cost-effective truck crane used to lift wind turbines because its low transportation cost. The intelligent control system can smoothly extend or retract the boom by simply pushing one button, meanwhile quick assembly and dismantling design is convenient for SSC1020 crane to transport in a short distance.
Sany Group never stop making progress in the research and development of super-tonnage cranes in spite of the monopoly of overseas brands over its complicated core technologies, earning global recognition and market share with its high quality product and first-class service.
