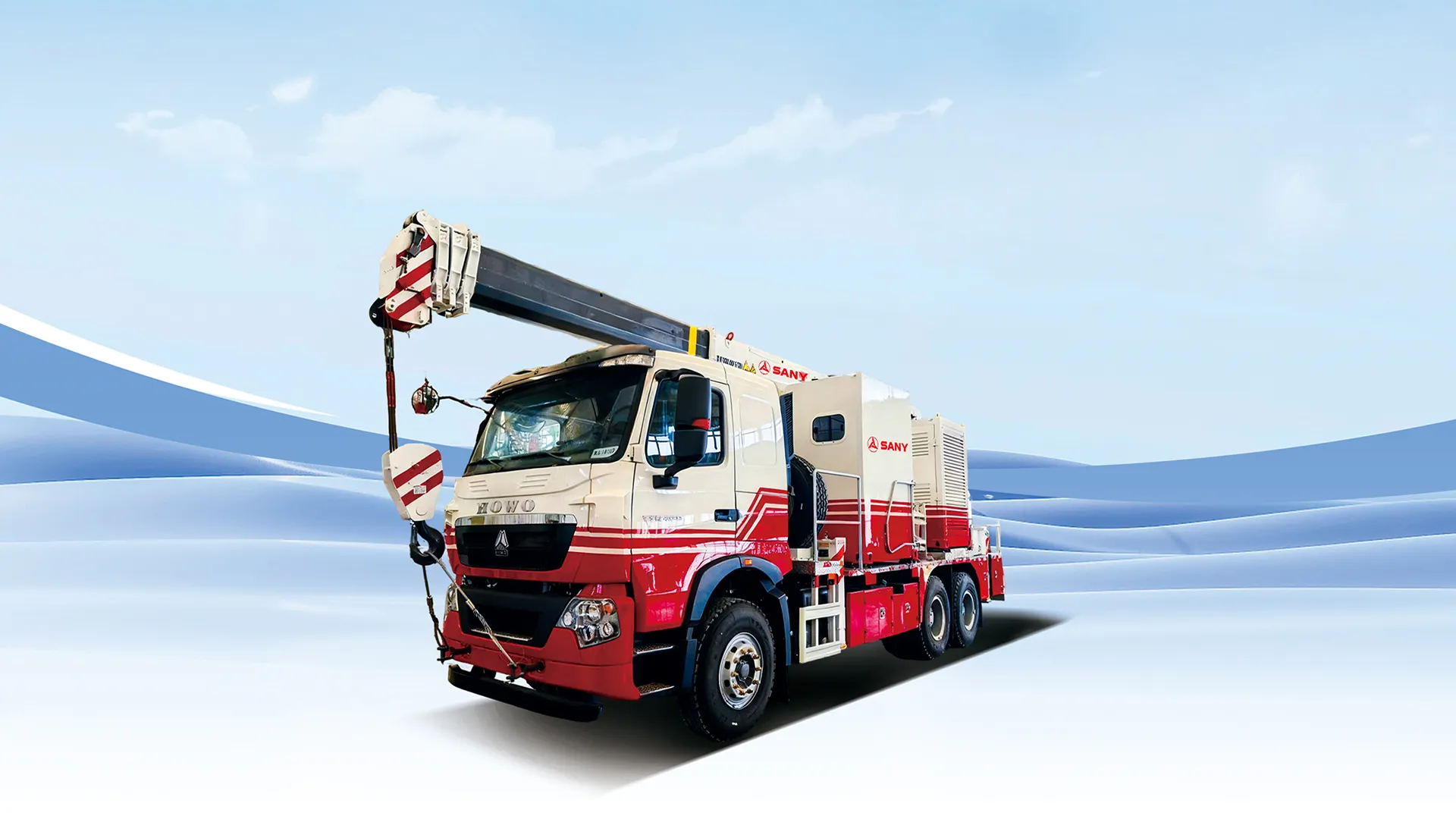

Wireline Unit
Wireline Equipment
Winch Capacity 1/8” Wireline 30000ft 3/16” Wireline 20000ftft
Pressure Testing Pressure1/8” Wireline 3000 3/16” Wireline 4000
Maximum Lifting Height101.7ft
1 / 2
Features
Parameters
Typical operating conditions
Wireline: Flow/Temp, Deploy/Fish, Bore CleanLoading configuration
Veh / Semi-Trlr / Skid-MountedOnboard Engine Power
CAT/Perkins (ATEX Certified)Hydraulic System
rexroth/DANFOSSPCE Control
SANYWinch Capacity
1/8” Wireline 30000ft 3/16” Wireline 20000ftftPressure Testing Pressure
1/8” Wireline 3000 3/16” Wireline 4000Maximum Lifting Height
101.7ftRecommended
SYPHT-100/SYPHC-100
70(0.48) Mpa
Maximum discharge pressure in PSI：
977 (3.7) m³/min
Maximum discharge volume gpm：
1.0~2.6 g/cm³
Density range：
SYPHT-150/SYPHC-150/SYPHQ-150
70(0.48) Mpa
Maximum discharge pressure in PSI：
977 (3.7) m³/min
Maximum discharge volume gpm：
1.0~2.6 g/cm³
Density range：
MZD1500-35
1500 Nm³/h
Nitrogen Flow Rate：
98%
Nitrogen Purity：
35/5000 MPa/psi
Rated Working Pressure：
MZD1200-35
1200 Nm³/h
Nitrogen Flow Rate：
95%
Nitrogen Purity：
35/5000 MPa/psi
Rated Working Pressure：
