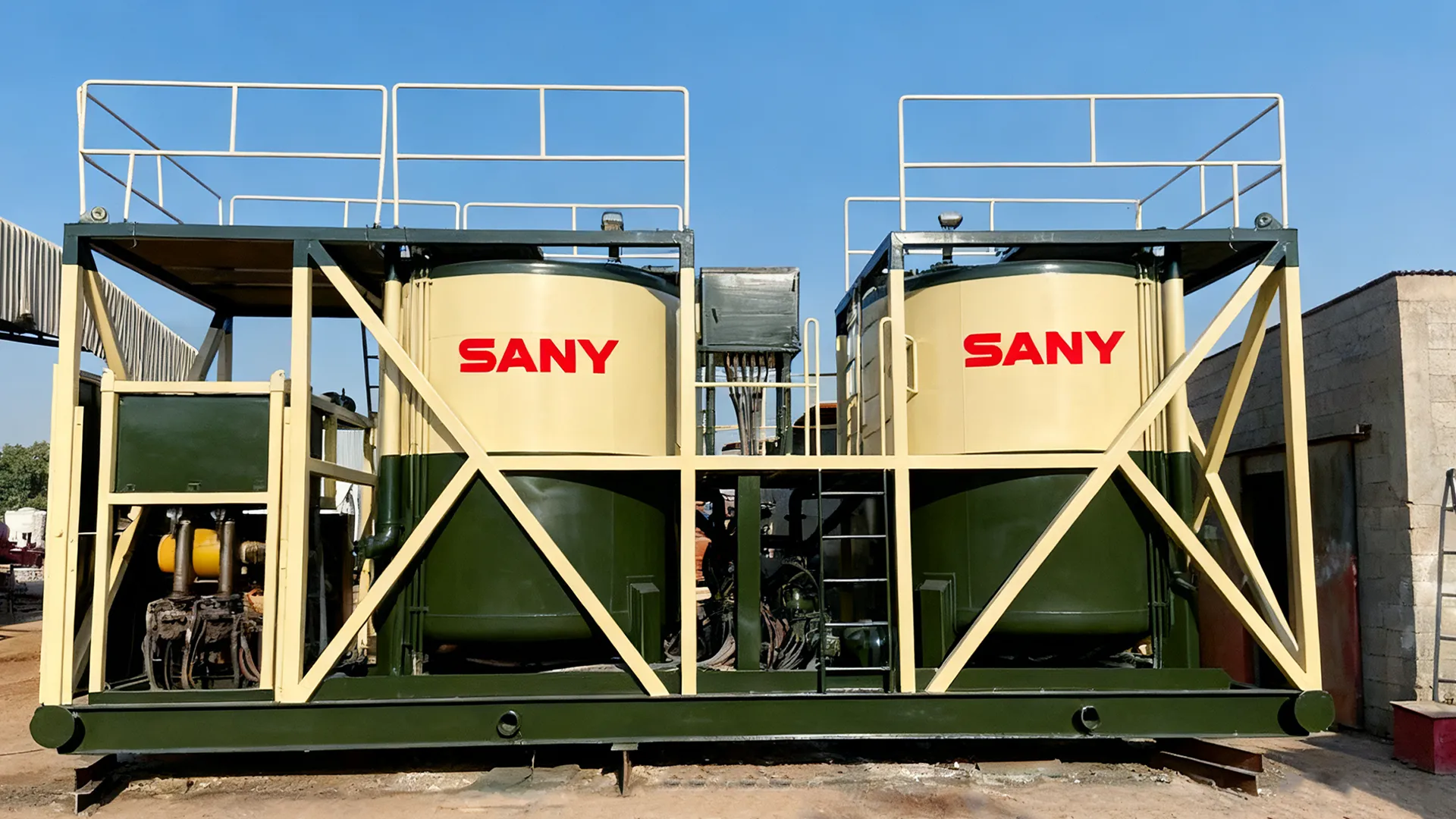

SYPHT-100/SYPHC-100
Batch mixing equipment
Maximum discharge pressure in PSI70(0.48)Mpa
Maximum discharge volume gpm977 (3.7)m³/min
Density range1.0~2.6g/cm³
1 / 3
Features
Parameters
Typical operating conditions
Blend (cont.), batch mix, spec drilling fluidLoading configuration
Vehicle-mounted/Semi-trailer/Skid-mountedChassis
Sany/Beiben/Sinotruk/Semi-trailerEngine
Dom(Cummins, Weichai); Imp(Caterpillar, Cummins)transfer case
Imp (Dust, Spoor) TC; Dom (Leishida)Batch mixing vessel （BBL）
50*2Circulating centrifugal pump
6"x5"Gravity-fed centrifugal pump
6"x5"Maximum discharge pressure in PSI
70(0.48)MpaMaximum discharge volume gpm
977 (3.7)m³/minDensity range
1.0~2.6g/cm³Mixing method
Simp Ash Hopper + High-Energy Mix SysControl method
Manual control / Sany density automatic controlOverall Dimensions
11.6x2.5x4.0mMaximum Total Mass
20000kgRecommended
SYPHT-150/SYPHC-150/SYPHQ-150
70(0.48) Mpa
Maximum discharge pressure in PSI：
977 (3.7) m³/min
Maximum discharge volume gpm：
1.0~2.6 g/cm³
Density range：
MZD1500-35
1500 Nm³/h
Nitrogen Flow Rate：
98%
Nitrogen Purity：
35/5000 MPa/psi
Rated Working Pressure：
MZD900-35
900 Nm³/h
Nitrogen Flow Rate：
98%
Nitrogen Purity：
2.5/350 MPa/psi
Rated Working Pressure：
MZD1200-35
1200 Nm³/h
Nitrogen Flow Rate：
95%
Nitrogen Purity：
35/5000 MPa/psi
Rated Working Pressure：
