LGC450 / LGT450 / LGQ450

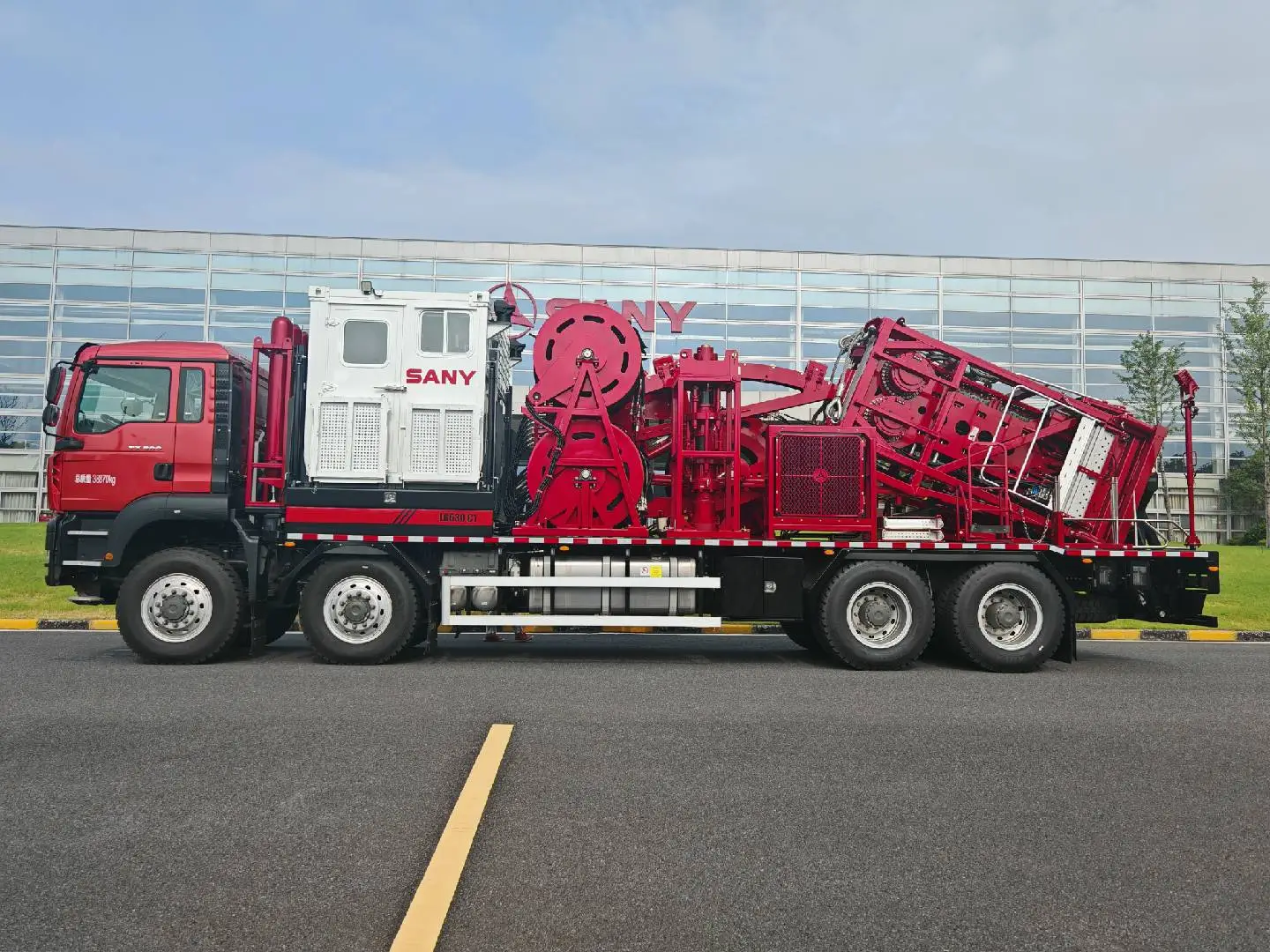

Coiled Tubing Unit
Continuous Pulling Capacity100,000(45,000) Ibs
Continuous Snubbing Capacity50,000(22,500)Ibs
Reel Capacity"2""-6600 m(21,650ft) 1.75""-8400 m(27,500ft)"
Features
Parameters
Carrier Type
Truck / Trailer / SkidChassis
SANY / SINOTRUK / TrailerInjector Type
ZRT-100KContinuous Pulling Capacity
100,000(45,000) IbsContinuous Snubbing Capacity
50,000(22,500)IbsReel Capacity
"2""-6600 m(21,650ft) 1.75""-8400 m(27,500ft)"Well Control Equipment
4-1/16inchApplicable Tubing Size
1.75-2.875inchOperating Pressure
10,000 / 15,000psiOverall Dimension
16.5×2.5×4.5mTotal Weight
46,000kgType
Coiled Tubing UnitRecommended
LGC360 / LGT360 / LGQ360
80,000(36,000) Ibs
Continuous Pulling Capacity:
40,000(18,000) Ibs
Continuous Snubbing Capacity:
1.75" -5500 m(18,000ft) 1.5”-6700 m(22,000ft)
Reel Capacity:
LGC270/LGT270/LGQ270
60,000(27,000) Ibs
Continuous Pulling Capacity:
30,000(13,500) Ibs
Continuous Snubbing Capacity:
1.75“-4600m(15,000ft） 1.5"-6400m(21,000ft)
Reel Capacity:
LGC630 / LGT630 / LGQ630
140,000(63,000) Ibs
Continuous Pulling Capacity:
70,000(31,500) Ibs
Continuous Snubbing Capacity:
2.375"-6500 m(21,300ft) 2"-9000 m(29,500ft)
Reel Capacity:
ZRT-60K
70,000 Ibs
Max. Pulling Force:
60,000 Ibs
Continuous Pulling Capacity:
30,000 Ibs
Continuous Snubbing Capacity:
