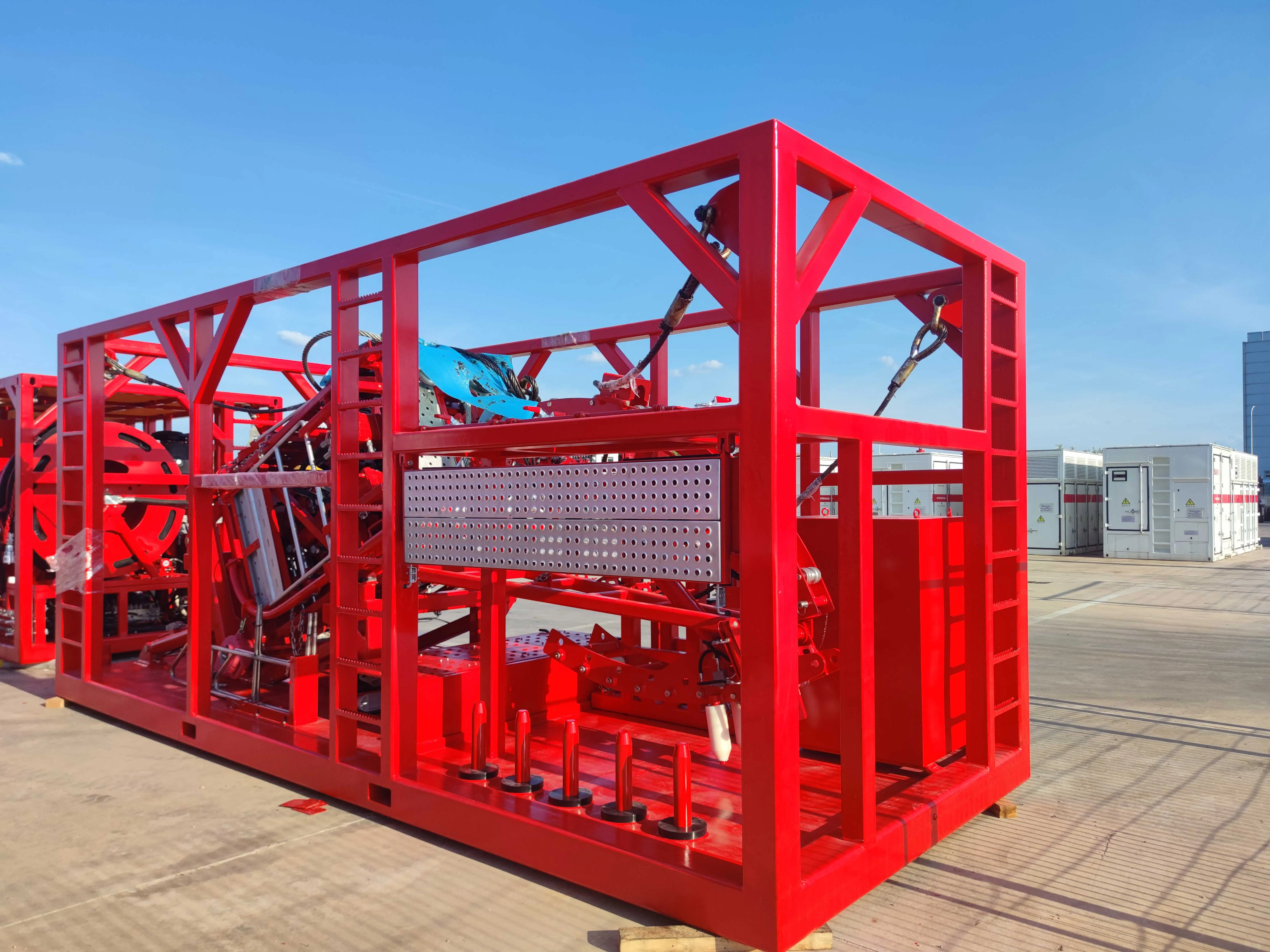

LGC270/LGT270/LGQ270
Coiled Tubing Unit
Continuous Pulling Capacity60,000(27,000) Ibs
Continuous Snubbing Capacity30,000(13,500)Ibs
Reel Capacity1.75“-4600m(15,000ft） 1.5"-6400m(21,000ft)
1 / 2
Features
Parameters
Carrier Type
Truck / Trailer / SkidChassis
SANY / SINOTRUK / TrailerInjector Type
ZRT-80KContinuous Pulling Capacity
60,000(27,000) IbsContinuous Snubbing Capacity
30,000(13,500)IbsReel Capacity
1.75“-4600m(15,000ft） 1.5"-6400m(21,000ft)Well Control Equipment
3-1/16(77.8）inchApplicable Tubing Size
1.25～1.75inchOperating Pressure
10,000 / 15,000psiOverall Dimension
15.8×2.5×4.4mTotal Weight
42,000kgType
Coiled Tubing UnitRecommended
LGC360 / LGT360 / LGQ360
80,000(36,000) Ibs
Continuous Pulling Capacity:
40,000(18,000) Ibs
Continuous Snubbing Capacity:
1.75" -5500 m(18,000ft) 1.5”-6700 m(22,000ft)
Reel Capacity:
LGC450 / LGT450 / LGQ450
100,000(45,000) Ibs
Continuous Pulling Capacity:
50,000(22,500) Ibs
Continuous Snubbing Capacity:
"2""-6600 m(21,650ft) 1.75""-8400 m(27,500ft)"
Reel Capacity:
LGC630 / LGT630 / LGQ630
140,000(63,000) Ibs
Continuous Pulling Capacity:
70,000(31,500) Ibs
Continuous Snubbing Capacity:
2.375"-6500 m(21,300ft) 2"-9000 m(29,500ft)
Reel Capacity:
ZRT-60K
70,000 Ibs
Max. Pulling Force:
60,000 Ibs
Continuous Pulling Capacity:
30,000 Ibs
Continuous Snubbing Capacity:
