EBZ318H

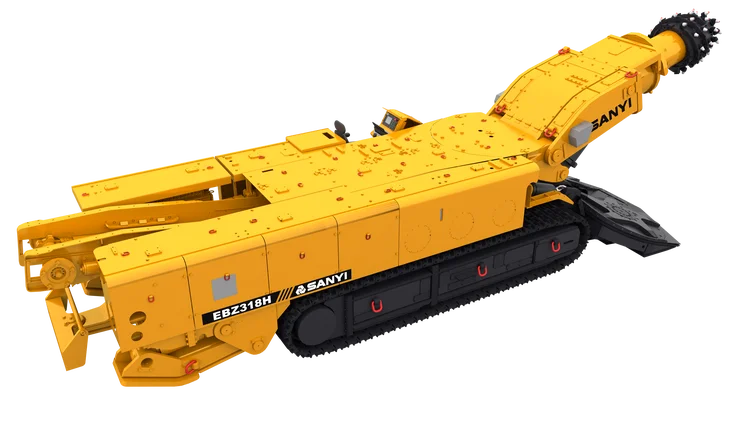

EBZ318H Coal/Rock Seam Roadheader
Cutting Motor Power
318 kW
Total Power
570 kW
Working Conditions
All Coal /half coal /All Rock Seam

Features

Cutting head

· The cutting head adopts international first-class technology, the design of single cutting force is large, the arrangement of cutting teeth is reasonable, and the ability of rock breaking through fault is strong.

Shovel plate

· The driving device of shovel plate is driven by hydraulic motor with low speed and high torque. The star wheel is a 5-jaw integral structure. The upper surface of the shovel-plate is paved with a high-strength wear-resistant plate.

Walking part

· The walking part is equipped with a large torque output device, which provides driving power to the whole equipment through the driving wheel.

· At the same time, it is equipped with wear-resistant support wheel and tensioning guide mechanism to provide guarantee for long working hours of equipment.

Transportation part

· The channel adopts fluent design to effectively solve the transportation problem.Supporting high strength C - class ring chain and cast steel abrasion - resistant scraper.The first drive adopts low speed and high torque motor direct drive, strong power, simple structure and convenient maintenance.

Specs & Compare

Cutting Motor Power
Height
Height Of Roadway
Length
Normal Cutting Hardness
Normal Cutting Hardness (Rock Thickness <500mm)
Service Voltage
Specified Output Power
Total Power
Walking Speed
Water Supply Pressure
Whole Weight
Width
Width Of Crawler Wheel
Width Of Roadway
Working Conditions
EBZ318H
318 kW
2.22 m
3.6-5.46 m
13.1 m
<9 F
9-10F
1140 V
318 kW
570 kW
0-5.5 m/Min
3-8 MPa
125 T
3.8 m
2.93 m
4.4-6.8 m
All Coal /half coal /All Rock Seam
