EBZ160CA

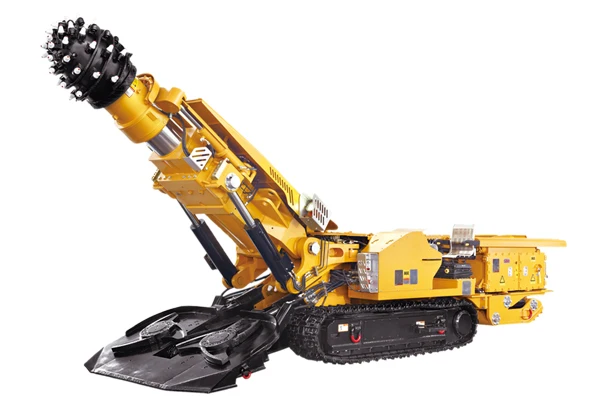

EBZ160 All/Semi Coal Mine Roadheader
Total Power
265 kW
Working Conditions
Coal/Semi-coal Seam
Cutting Motor Power
160/100 kW

Features

Cutting head

· The cutting head adopts international first-class technology, the design of single cutting force is large, the arrangement of cutting teeth is reasonable, and the ability of rock breaking through fault is strong.

Shovel plate

· The driving device of shovel plate is driven by hydraulic motor with low speed and high torque. The star wheel is a 5-jaw integral structure. The upper surface of the shovel-plate is paved with a high-strength wear-resistant plate.

Walking part

· The walking part is equipped with a large torque output device, which provides driving power to the whole equipment through the driving wheel.

· At the same time, it is equipped with wear-resistant support wheel and tensioning guide mechanism to provide guarantee for long working hours of equipment.

Transportation part

· The channel adopts fluent design to effectively solve the transportation problem.Supporting high strength C - class ring chain and cast steel abrasion - resistant scraper.The first drive adopts low speed and high torque motor direct drive, strong power, simple structure and convenient maintenance.

Specs & Compare

Length
Width
Width Of Crawler Wheel
Height
Whole Weight
Working Conditions
Height Of Roadway
Width Of Roadway
Normal Cutting Hardness
Normal Cutting Hardness (Rock Thickness <500mm)
Walking Speed
Cutting Motor Power
Specified Output Power
Service Voltage
Water Supply Pressure
Total Power
EBZ160CA
10.1 m
3 m
2.4 m
1.9 m
45 T
Coal/Semi-coal Seam
2.2-4.8 m
3.3-5.5 m
6-7 F
8-9F
0-7 m/Min
160/100 kW
160 kW
1140/660 V
3-8 MPa
265 kW
