SYL1000D6C1

Container type set

Frequency60Hz
Rated Power1000/1250kW/kVA
Rated Voltage400V

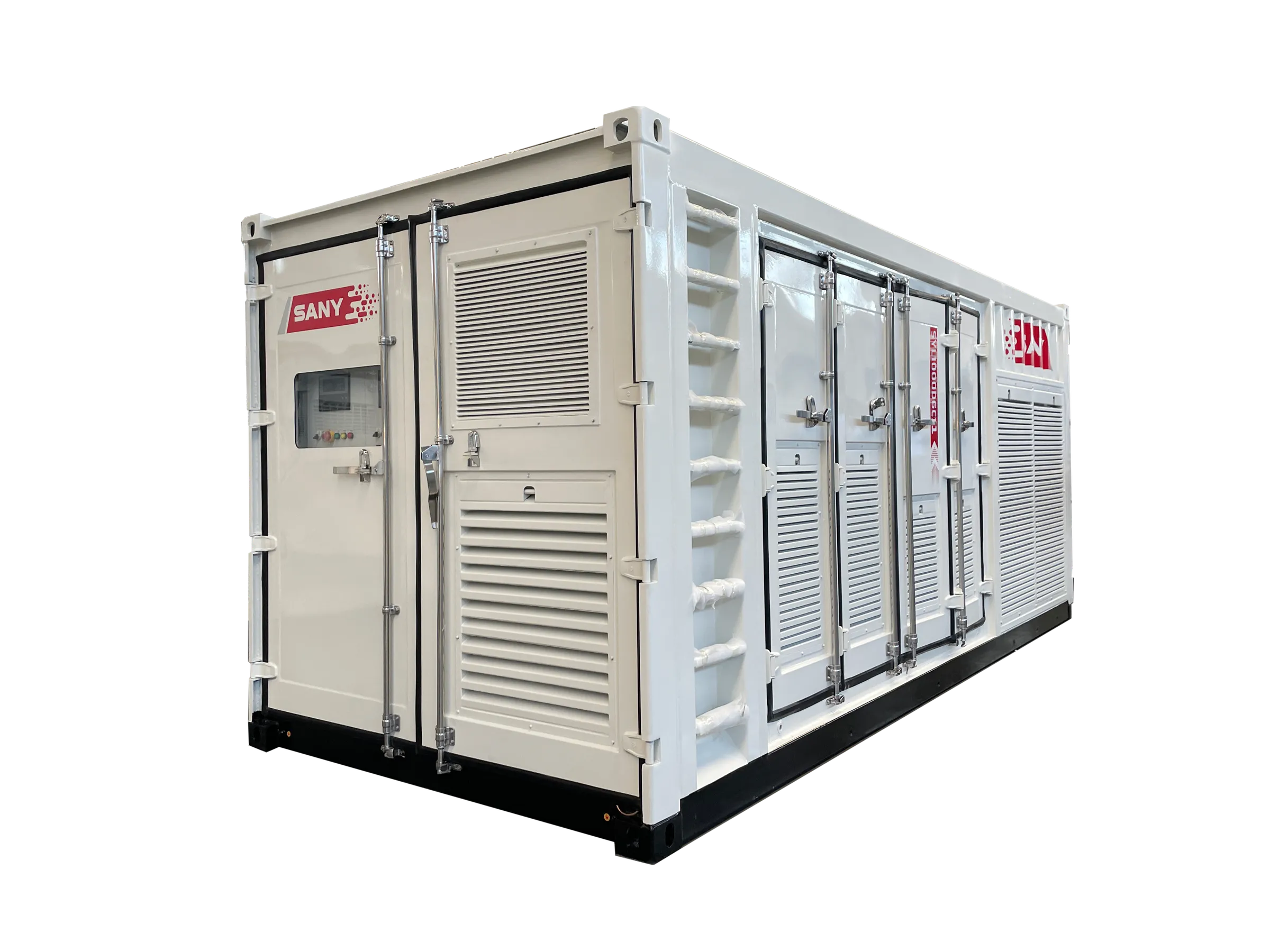

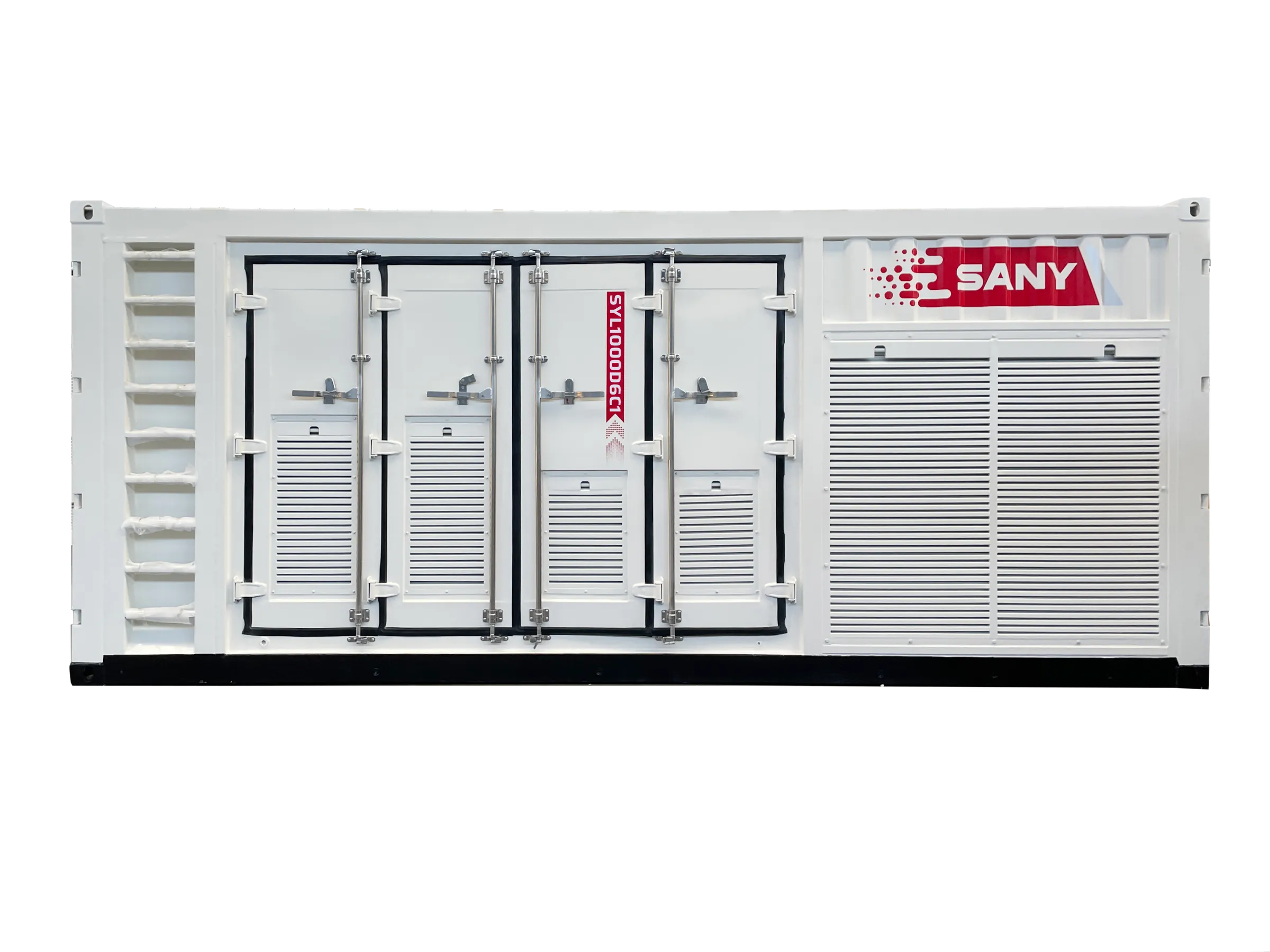

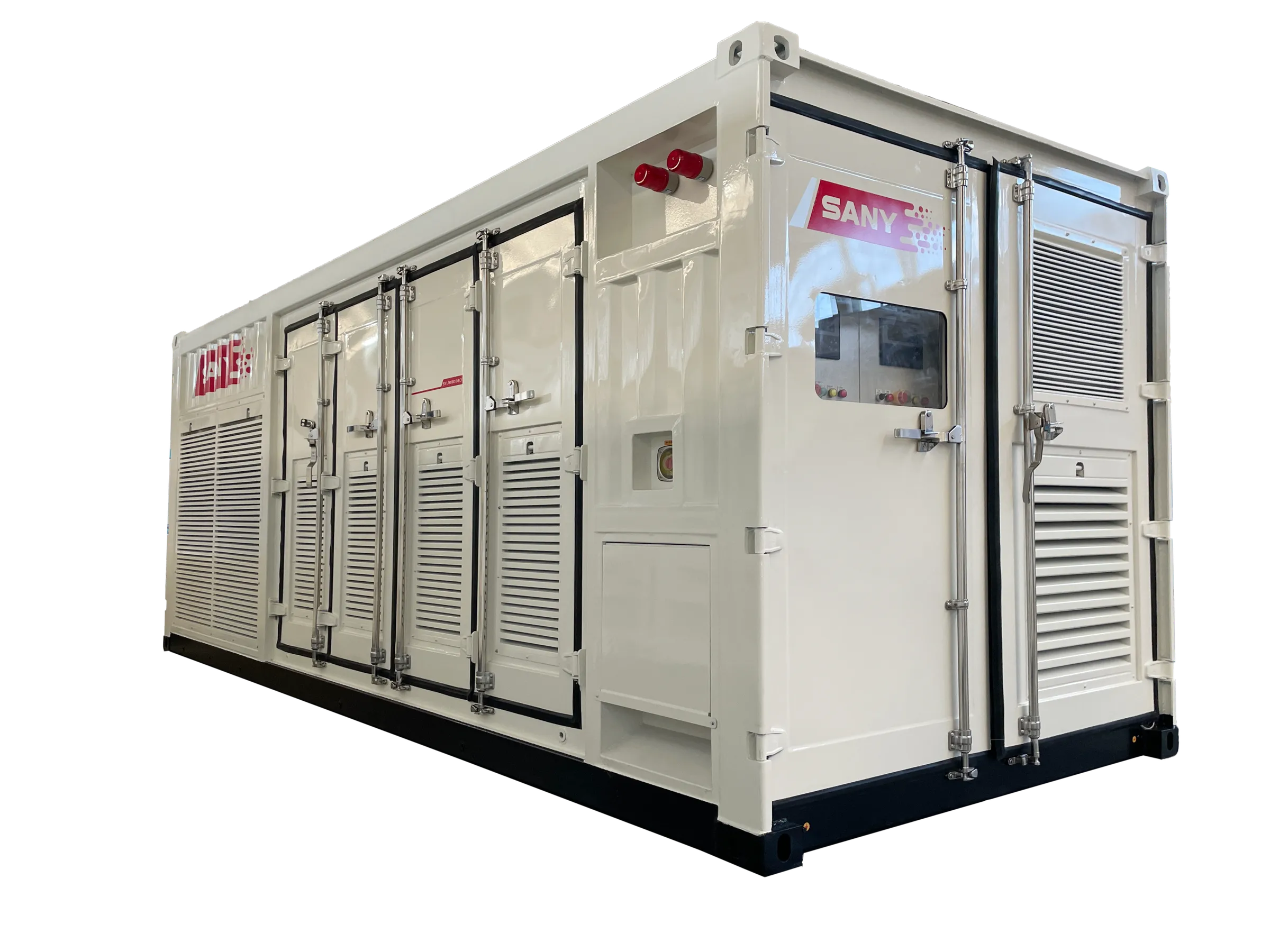

SYL1000D6C1 - Image 1
SYL1000D6C1 - Image 2
SYL1000D6C1 - Image 3
SYL1000D6C1 - Image 4
1 / 4

Features

Parameters

Brochure

Model
SYL1000D6C1
Frequency
60Hz
Speed
1800rpm
Rated Power
1000/1250kW/kVA
Rated Voltage
400V
Phase
3
Speed Control Type
Electronic speed control
Engine Brand
HUNAN DEUTZ
Engine Model
D17S3(2set)
No. of Cylinders
6
Displacement
16.25L
Bore × Stroke
142×171mm
Alternator Brand
Leroy Somer
Alternator Model
LSA49.3M6(2set)
Length
6058mm
Width
2438mm
Height
2591mm
Net Weight
14500kg
