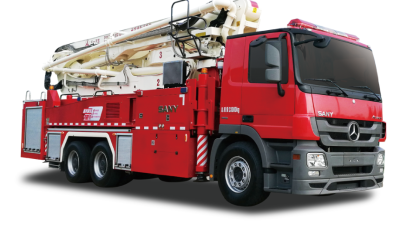

SYM5330JXFJP38
Long Span Water Tower Fire Truck
Model of Chassis
Actros 3341E5
Maximum Working Height/ Working Amplitude
38m m
Rated Flow of Pump
6000LPM L/s

Features

Long-span working area

· Six-section folded boom structure makes fire truck working with large span and have strong ability of crossing barriers with realizing accurate fire extinguishing

Small supporting coverage

· Four support legs can support in any position, suitable for wide site condition

Interlocking operating

· Water pumping can realize interlocking operation with boom adjusting, more efficiency and saving rescue time.

Remote control and Video monitoring

· Remote control and Video monitoring system make easy and safe control.

Specs & Compare

Boom System
Maximum Working Height/ Working Amplitude
Maximum Downward Working Depth
Maximum Working Amplitude in case of 3.3 m
Unfolding Time of Boom
Slewing Angle
Slewing Time
Type
Chassis Parameter
Model of Chassis
Engine Power
Tail Gas Emission Standard
Complete Vehicle Parameter
Overall Dimensions (L*W*H)
Maximum Total Weight
Others
Manipulation Mode
Emergency Retraction Power
Hydraulic System
Model of Fire Control Pump
Rated Flow of Pump
Rated Working Flow of Whole Vehicle
Model of Fire Control Gun
Maximum Jetting Range of Water Gun
Scope of Left and Right Swing Angels of Fire Contr
Allowable Working Pressure of Pipeline
Supporting System
Maximum Unfolding Span
Action Time of Support Leg
SYM5330JXFJP38
Boom System
38m m
21.9
22.5
140s
±360°
200s
Long Span Water Tower
Chassis Parameter
Actros 3341E5
300kw@1800rpm
Euro V
Complete Vehicle Parameter
10.64*2.4*4.0 m
33000 kg
Others
Spot Control+Wire&wireless Control
Gasoline Engine
Hydraulic System
Hale
6000LPM L/s
4200LPM
Akron 3482
80m(water)/70m(foam)
-45°~45°
2.5Mpa
Supporting System
7.3*7.3
40s
