What Is Concrete Batching Plant? Everything You Should Know

Concrete batching plants are the silent powerhouses behind the world's most impressive structures It is far more than just a mixer; it is a sophisticated production hub that accurately measures, proportions, and transforms raw materials (aggregates, cement, water, additives) into precise, high-quality concrete. From small residential homes to massive highways and soaring skyscrapers, these plants directly shape project efficiency and the long-term durability of structures.This guide provides a clear, complete overview of what is concrete batching plant,their types, working principles, purchasing tips, and more, helping you understand all the information you need to know.

What Is Batching Plant?

Definition

A concrete batching plant is an integrated precision system that automates the measuring and mixing of raw materials according to preset designs, producing consistent, high-quality concrete. It eliminates the inconsistencies of manual mixing and serves as the core equipment for efficient, large-scale concrete production in modern construction.

Main applications in projects

Residential/commercial buildings: Supply grade-specific concrete (e.g., C30, C40) for foundations, beams, and floors.

Transportation infrastructure: Produce durable concrete for highway bases, bridge piers, and railway ballast.

Water conservancy projects: Make impermeable concrete (e.g., P6, P8) for dams, sluices, and irrigation channels.

Special scenarios: Customize concrete (wear-resistant, lightweight) for factory floors or port platforms.

Core Function

Ensures strength: Controls cement-aggregate ratios to meet design grades (e.g., C35), avoiding weak spots or cracks.

Maintains workability: Regulates water/admixture amounts to keep concrete easy to pour, preventing segregation.

Guarantees consistency: Standardized batching eliminates batch-to-batch quality gaps, ensuring structural stability for large projects.

Types of Concrete Batching Plants

Stationary (Fixed) Plants vs Mobile Plants vs On-site Plants

Wet-Mix vs Dry-Mix Concrete Plant

How Does a Concrete Batch Plant Work?

Key components: The "Building Blocks" of the Plant

• Aggregate Bins: These are steel compartments that store different grades of aggregates and utilize vibrators to ensure a consistent, clog-free discharge.
• Cement Silos: These sealed cylindrical tanks provide bulk storage for cement and are equipped with dust collectors and level sensors for efficient operation.
• Conveyors: This system includes belt conveyors for moving aggregates and sealed screw conveyors for transporting cement and additives to prevent leakage.
• Mixers: As the core mixing unit, options include high-efficiency compulsory mixers for wet concrete or simpler dry mixers for lower-energy applications.
• Control System: This centralized unit automates the entire process by storing mix designs, monitoring real-time data, and ensuring production traceability.

Step-by-step process of batching

• Raw Material Storage: Aggregates in separate bins, cement in sealed silos (prevents moisture), additives in dedicated tanks, water in filtered tanks.
• Precise Batching: The control system triggers conveyors to feed materials into weighing hoppers—e.g., 310kg cement, 650kg sand, 1200kg gravel, 180kg water for C35 concrete—stopping automatically when weights hit set values.
• Mixing: Materials are discharged into a compulsory mixer (wet-mix) or dry mixer (dry-mix), rotating at 15–20 rpm for 60–120 seconds (wet) or 30–60 seconds (dry) to ensure uniformity.
• Discharge & Transport: Wet concrete goes to mixer trucks; dry mixtures to special trucks for on-site water addition. The mixer is then cleaned with high-pressure water to avoid residue buildup.

How to Choose the Right Concrete Batching Plant?

Project Scale & Duration

1. For Large-Scale/Long-Term Projects (≥ 2 years):

• Recommended Type: Stationary Plant.
• Rationale: Higher initial investment is justified by lower operational costs per unit of concrete over the project's lifespan.
• Typical Applications: Major infrastructure (e.g., dams, airports, multi-year highway constructions), large industrial complexes, and ready-mix concrete suppliers serving a wide area.
• Key Data: Projects with a total concrete demand exceeding 100,000 cubic meters. These plants offer production capacities typically ranging from 120 m³/h to over 300 m³/h.

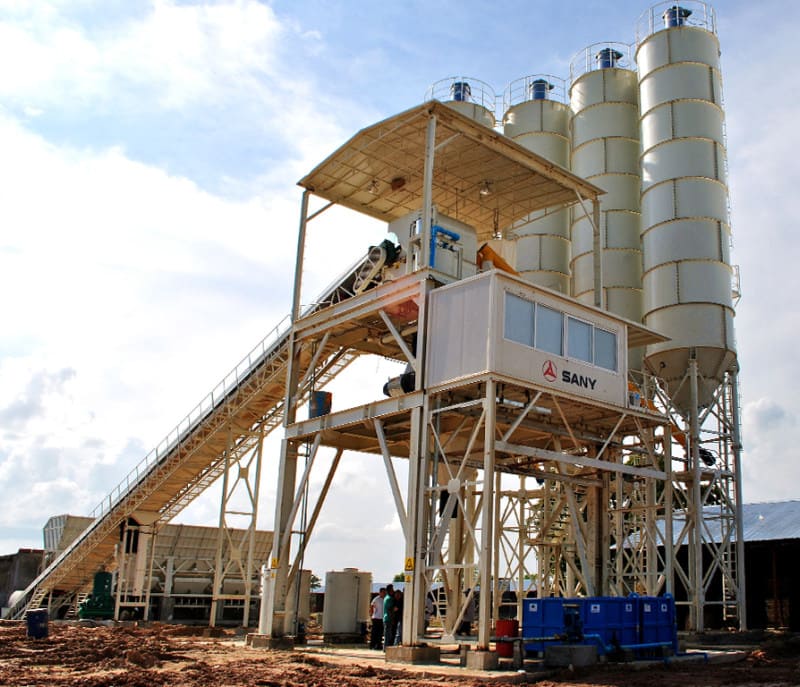

• Product Reference: Leading batching plant brands like SANY offer stationary models such as SANY HZS30G. These plants feature output capacities up to 300 m³/h, stable operation with advanced vibration-damping structures, and are widely used in key projects like airport runways and cross-river bridges.

2. For Small-Scale/Short-Term or Multi-Site Projects (≤ 1 year):

• Recommended Type: Mobile or Compact Plant.
• Rationale: Prioritizes flexibility and rapid deployment over ultimate production efficiency. Minimizes mobilization/demobilization costs and time.
• Typical Applications: Residential subdivisions, small commercial buildings, remote location projects, and road repair projects that move along a route.
• Key Data: Mobilization and demobilization can be completed within 1-2 weeks. Production capacities are typically in the range of 30 m³/h to 100 m³/h.

Required Output Capacity: Precise Production Planning

Calculation Method:

1.Determine the project's peak daily concrete demand (e.g., 500 m³).

2.Divide by the planned daily operational hours (e.g., 8 hours). This gives your minimum required hourly output (500 m³ / 8 h = 62.5 m³/h).

Capacity Buffer:

It is critical to select a plant with a rated capacity 15-20% higher than your calculated minimum.

Example: For a 62.5 m³/h requirement, a 75 m³/h plant should be selected. This buffer accounts for batch cycle interruptions, maintenance, minor delays, and mixing time variations.

Consequence of Undersizing: A plant operating continuously at or above its maximum capacity will experience accelerated wear, higher failure rates, and inability to meet demand, causing costly project delays.

Environmental & Site Compliance: Mitigating Operational Impact

1.Dust Control (Emissions):

Technology: High-efficiency pulse-jet baghouse dust collectors.

Standard: Ensure the system is designed to maintain particulate emissions below 20 mg/m³, which is more stringent than the common 30 mg/m³ standard in many regions, ensuring future compliance and community acceptance.

2.Noise Reduction:

Technology: Full acoustic enclosures for mixers, motors, and conveyor drives.

Standard: The plant should operate at a noise level of ≤ 70 dB(A) measured at a 1-meter distance from the equipment. This is essential for urban projects with strict noise ordinances and night work restrictions.

3.Water Recycling and Conservation:

Technology: Closed-loop wastewater recycling system that collects washout water and reuses it in future concrete mixes.

Benefit: Reduces freshwater consumption by 30-50% and achieves nearly zero wastewater discharge, lowering water costs and environmental impact.

Mixer Type:

• Compulsory Mixer (Wet Mix): Standard for high-quality, homogeneous concrete. Ideal for high-strength grades, controlled settings, and high-volume production. Mixing time: 60-90 seconds.
• Tilting Drum Mixer (Dry Mix): Simpler, more robust. Often used for lower-strength applications, precast elements, or projects where slightly less uniformity is acceptable. Lower energy consumption. Mixing time: ~30-60 seconds.

Conclusion

What is concrete batching plant? It is a specialized system that accurately measures, proportions, and mixes raw materials to produce standardized, high-performance concrete. This comprehensive guide clarifies this definition, compares the primary types of batching plants available, and outlines key selection criteria to match the right plant configuration with specific project requirements. By understanding these fundamental aspects, construction professionals can make informed decisions to optimize concrete production efficiency and quality.

FAQs

What is batching in concrete?

Batching in concrete simply means measuring and combining the raw materials (cement, sand, aggregates, water, and admixtures) in specific proportions to produce concrete with the desired strength and quality. There are two main methods:

• Weight Batching – materials are weighed before mixing (most accurate and widely used).
• Volume Batching – materials are measured by volume (less precise, often used in small projects).

Is it safe to live near a concrete batch plant?

Yes, if the plant meets environmental standards. Modern plants use dust control (sealed conveyors, dust collectors) and noise reduction (sound covers) to minimize impact—dust and noise levels comply with residential area regulations.

What is the difference between ready-mix concrete and batching plants?

• Ready-mix concrete: It is a finished product mixed concrete transported and poured directly for construction.
• Batching plant: It is an industrial facility that combines raw materials to produce concrete.

Are concrete batch plants profitable?

Yes, many concrete batch plants are portable, but not all. The industry offers solutions specifically designed for mobility to meet different project needs. There are mainly three types: mobile concrete batch plants (highly portable), mobile concrete batch plants (fixed), modular/portable batch plants (a flexible middle ground).
