Different Types of Graders And Their Uses: Buying Guide

In earthwork engineering, road construction, and site preparation, motor graders are indispensable core equipment. Different types of motor graders, each designed for specific functions, can meet the operational needs in different scenarios. Understanding the types of graders, their basic knowledge, structure, principles, and selection methods is key to using this equipment effectively and improving work efficiency. This article provides a comprehensive overview from multiple perspectives, providing a practical reference for industry professionals.

What is a Motor Grader?

A motor grader, also known as a road grader or motorized grader, is an earthmoving machine used for leveling ground surfaces and shaping soil or asphalt. It is widely used in various scenarios, capable of shaping ground into a level surface or a slope at a specified angle, clearing protrusions, spreading materials, maintaining unpaved surfaces, and assisting in the construction of ramps and drainage ditches to ensure the final project meets design requirements.

What are the Structural Features of a Motor Grader?

Graders feature a unique elongated body and a three-axle structure. Core components include adjustable-angle and adjustable-height blades (moldboard), a frame, an engine, and a control system. Some models also come equipped with attachments such as discs and rippers. A typical grader has three axles: the engine and cab are located above the rear axle at one end of the vehicle, and the third axle is located at the front, with the blades positioned between the two.

What is the Working Principle of a Motor Grader?

The Motor Grader operates by relying on the coordinated operation of its core components and flexible control of the blades. The first axle controls the steering wheel at the front of the unit, the second axle mounts the blades for leveling ground or trimming slopes, and the third axle is equipped with tandem wheels beneath the cab and engine, enabling flexible movement. The operator has a clear view of the work area from the cab and can precisely adjust the blade height, tilt angle, and rotation angle to adapt to different operational needs.

What are the Different Types of Motor Graders?

Motor graders can be divided into different types according to two major dimensions: frame structure and equipment size. Each type of grader has clearly distinct structural characteristics, operating methods, and suitable application scenarios. Detailed specifications are as follows:

Classification by Frame Structure:

1.Rigid Frame Motor Grader

• Structural Features: Adopts a rigid, non-bendable single-axis fixed rectangular frame, with a stable overall structure and low mechanical wear; usually equipped with six wheels, four located at the rear and under the cab, two at the front, and the blade is installed behind the front wheels.
• Core Advantages: Simple structure, low maintenance cost, strong stability, able to achieve precise cutting angle and uniform leveling effect, suitable for operations where precision and strength are more important than flexibility.
• Applicable Scenarios: Widely used in daily leveling operations, commonly found in farms, construction sites, airport runways, highways, industrial sites, etc., suitable for long-distance, straight-line or large-scale leveling operations.

2. Articulated Motor Grader

• Structural Features: Connects the front and rear frames through a pivot pin, equipped with a central hinge that allows independent movement of the front and rear parts; usually has two axles, which can offset and position the front frame and blade relative to the rear frame, with outstanding flexibility.
• Core Advantages: Small turning radius, strong mobility, efficient operation in narrow spaces, adaptable to complex terrain, and it is one of the most widely used types in the construction industry currently.
• Applicable Scenarios: Suitable for large-scale projects requiring flexible mobility and precise turning, such as snow removal, curve construction, urban development, parking lot construction, curved road maintenance, etc., and can also adapt to rugged or curved terrain.

Classification by Size：

1. Small-Sized Motor Grader

• Specifications: Usually 80-150 horsepower, equipped with a small blade, compact body and easy operation.
• Core Advantages: Extremely strong mobility, especially suitable for operation in narrow spaces, low operation difficulty, and no need for complex operation site conditions.
• Applicable Scenarios: Mostly used in small-scale construction projects, landscaping, lawn trimming, small plot finishing, and daily maintenance of unpaved roads.

2. Medium-Sized Motor Grader

• Specifications: 150-300 horsepower, compared with small-sized motor graders, it has a longer blade and larger wheels, moderate power and higher operation efficiency.
• Core Advantages: Balances power and flexibility, can cover a larger operation area, adapts to various medium and large-scale construction scenarios, and has strong versatility.
• Applicable Scenarios: Mainly used in medium and large-scale public projects and construction scenarios, such as highways, ordinary roads, and large construction sites, and can also be used for leveling hard roads.

3. Large-Sized Motor Grader (Heavy-Duty Motor Grader)

• Specifications: More than 300 horsepower, large in size, some models weigh more than 160,000 pounds, the blade width can reach 24 feet, and it can drive wider blades and various hydraulic accessories.
• Core Advantages: Strong power, high operation efficiency, can cope with large-scale and high-intensity leveling operations, with outstanding load-bearing capacity and operation range.
• Applicable Scenarios: Mainly used in large-scale operations such as mining, large-scale residential and commercial construction, and large-scale land development; its limitation is that it is more difficult to operate in narrow spaces and has relatively high fuel consumption.

How to Choose a Motor Grader?

Selecting a suitable motor grader requires considering multiple factors and making an accurate match according to specific construction scenarios. The details are explained as follows:

Clarify Core Tasks and Applications

• Large-scale projects (involving large-scale grading and earthmoving tasks, e.g., major construction sites, mining, large-scale land development):Prioritize heavy-duty motor graders with strong power and large blades.
• Small and medium-scale projects (e.g., road maintenance, small site preparation, landscaping):Choose compact and highly maneuverable small and medium-sized motor graders.

Focus on Key Technical Specifications

• Engine power: Directly determines machine performance and must be accurately matched to the work type and operating conditions.
• Hydraulic system: Affects the smoothness and precision of blade control. Advanced hydraulic systems simplify operation and improve efficiency.
• Blade parameters: Materials include steel, carbon steel, or tungsten carbide; shapes include flat, serrated, etc. Note that an overlarge blade may increase the load on the transmission system and frame of small motor graders.
• Drive system: Rear-wheel tandem drive is suitable for standard working conditions. For complex terrains such as mud, snow, and sand, all-wheel drive is preferred to ensure traction and controllability.
• Tires and tread: Radial tires offer better cushioning, while bias tires provide more direct road feedback. Smooth treads are ideal for fine grading, and deep treads for high-traction scenarios.

Emphasize Operating Experience and Technical Configurations

• Cab comfort: Ergonomically designed with excellent visibility and user-friendly controls to balance productivity and safety.

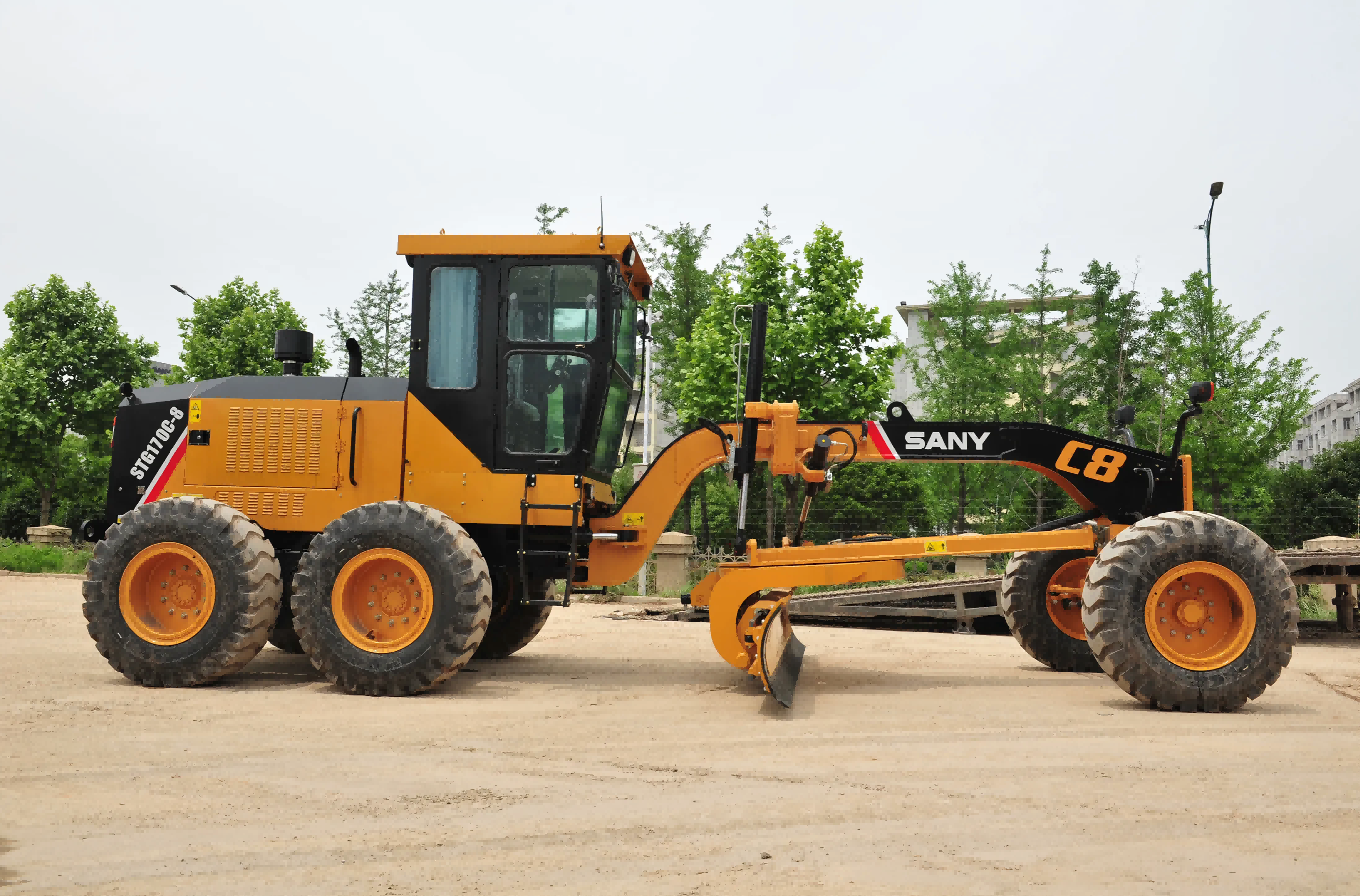

For example, the SANY STG Series Motor Graders are equipped with multi-position LED lights for good visibility at night. They also feature a ROPS/FOPS safety cab with high-quality interior materials, plus air conditioning (cooling and heating), fans, radio, audio systems, cup holders, etc., delivering exceptional driving comfort.

• Advanced technologies: Prioritize models with functions such as automatic articulated steering, automatic speed control, diagnostic data collection, and preset blade control to improve ease of operation and safety.

Consider Economic Costs and After-Sales Support

• Cost accounting: Balance the initial purchase cost and long-term operating costs, including fuel consumption, maintenance, and spare parts expenses.
• After-sales service and brand: Select reputable manufacturers with well-established dealer networks to ensure convenient and reliable equipment maintenance and spare parts supply.

Conclusion

In conclusion, understanding the types of graders and their working principles is a prerequisite for making an appropriate choice. When selecting a grader, it is essential to consider not only the equipment specifications, technical configuration, and economic costs, but also the actual operating scenario. Only in this way can the practical value of the grader be maximized, providing strong support for the high-quality and efficient advancement of various projects, while simultaneously achieving reasonable control of operating costs and comprehensive assurance of operational safety.

FAQs

How Much is a 12M Grader?

There's no absolute answer to this question. Grader prices are influenced by many factors, such as brand, size and capacity, technology and features, and market demand and supply. In terms of technology and features, a grader with advanced features, such as a GPS-based slope control system, automatic blade control, and telematics, is often more expensive than other brands. Prices may be lower during the off-season, while insufficient market supply will drive up prices.

Can Graders be Used for Snow Removal?

Yes, graders are highly effective at snow removal and are often used to clear roads during heavy snowfalls. They can be equipped with standard blades, snow wings, or V-plows, excelling at crushing and compacting snow and efficiently clearing long distances. They are among the most powerful pieces of equipment in snow removal operations.

What are the Common Problems with Road Graders?

Common grader problems include hydraulic system leaks and malfunctions, engine overheating due to maintenance negligence, and transmission system issues such as gear failure. Other common problems include uneven blade wear leading to poor leveling, electrical system malfunctions, and sluggish rotation due to insufficient lubrication of the joints. To avoid these problems, regular inspection and maintenance are recommended.
